Pattern Generator

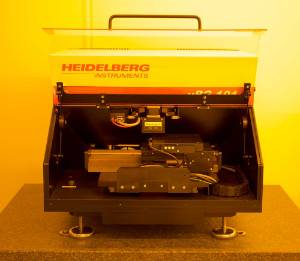

Heidelberg Instruments uPG 101
Micro Pattern Generator
Direct Writing in Photoresist
Sample size: up to 5 inches x 5 inches, thickness up to 6 mm
Exposures in common positive and negative resist
Minimum structure size: 5um
Maximum write area: depends on substrate size
