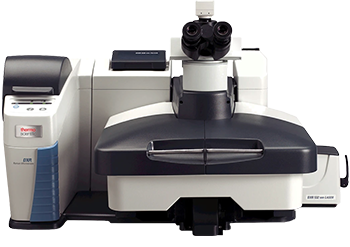

The Thermo Scientific DXR Raman Microscope is research-quality tool designed specifically for today’s multi-purpose analytical
labs. The DXR Raman microscope delivers high spatial resolution, together with unique
features designed to make it as easy as possible to get high quality results. Its
ease of use and shared software suite with Thermo Scientific FT-IR make it an excellent
tool for any materials research requiring microscopic inspection.
For small particle analysis, the 1-micron spatial resolution is invaluable. In addition, the DXR Raman microscope provides true confocal depth profiling abilities, enabling the investigation of inclusions or impurities and characterization of multi-layer polymer films.
Benefits of Raman:
- Rapid and non-destructive
- No sample preparation
- No water interference – easy to measure
aqueous samples - Complementary to FT-IR
- Easy access to low vibrational frequencies, making it easy to analyze inorganic molecules
System Capabilities:
- 532- and 780-nm high-brightness lasers; factory aligned, user-interchangeable
- Full range gratings for complete spectra in one shot. 50 cm-1 to 3500 cm-1
- 10X and 50X microscope objectives
- Patented autoalignment procedure
- Rapid automated calibration
- Laser power regulator
- Software-controlled motorized microscope stage for automated data collection
and 2D sample mapping
