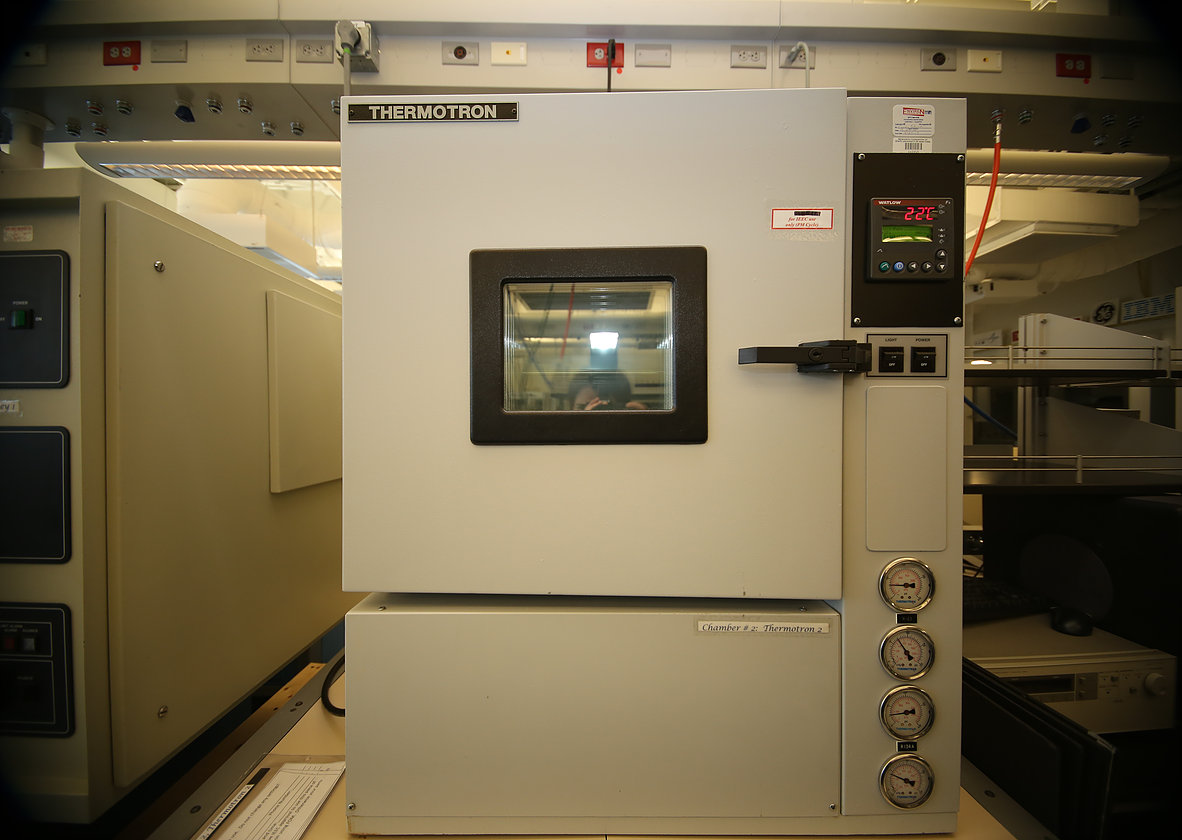

Thermotron S-1.2C Thermal Cycling Chamber
The Thermotron Thermal Cycling Chamber is used for single compartment thermal cycling. The chamber has capabilities of -73C to 177C, and empty chamber heat ramp up of 5C/min (0C-100C) and an empty chamber cool down ramp of up to 5C/min (100C-0C). Below 1C, the cool down is about 1C/min. The Thermotron is also retrofitted with video image capture. The interior dimensions are 15.5" (l) x 10.5 (w) x 12" (h).

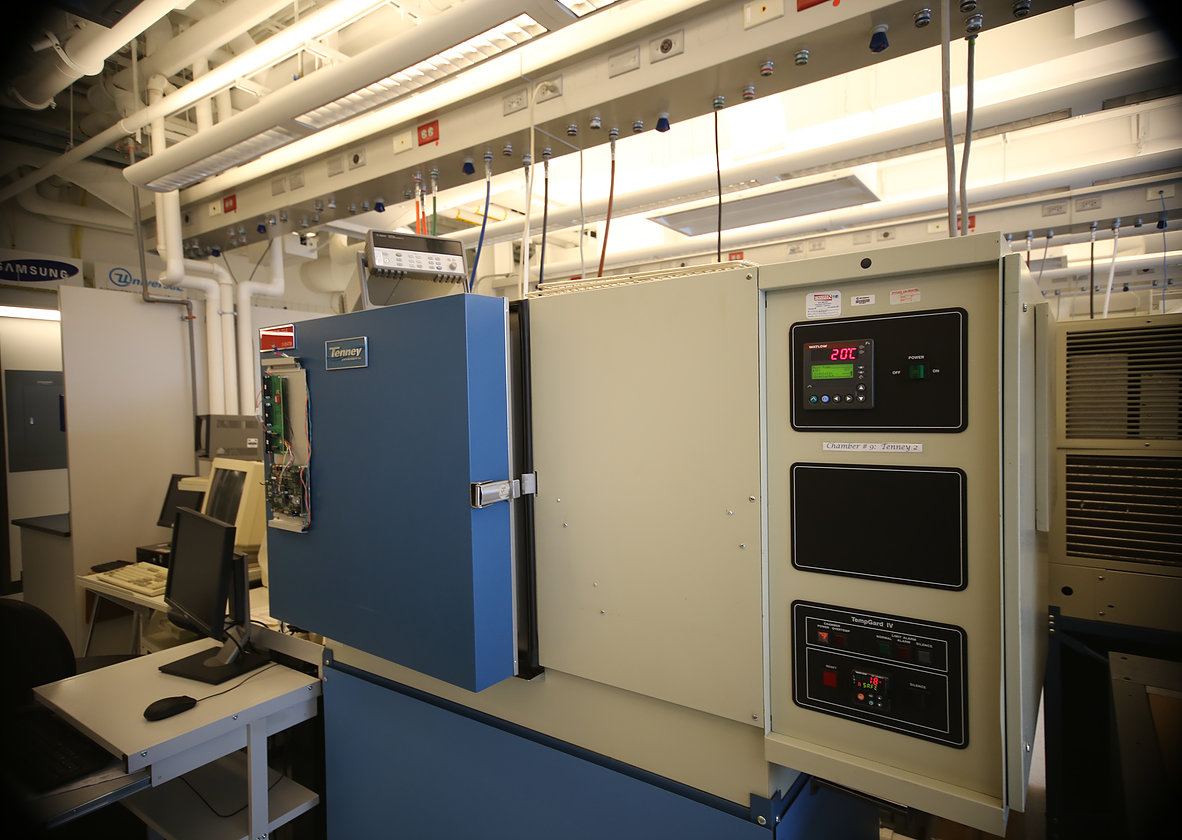

Tenney BTC Thermal Cycling Chamber
The Tenney Thermal Cycling Chamber is primarily used for single compartment thermal cycling. The chamber has capabilities of -70C to 200 C, an empty chamber heat ramp of up to 10C/min (0C-100C) and an empty chamber cool down ramp of up to 5C/min (100C-0C). Below OC, the cool down is about 3C/min. The interior dimensions are 20" (l) x 19" (w) x 21.5 (h).

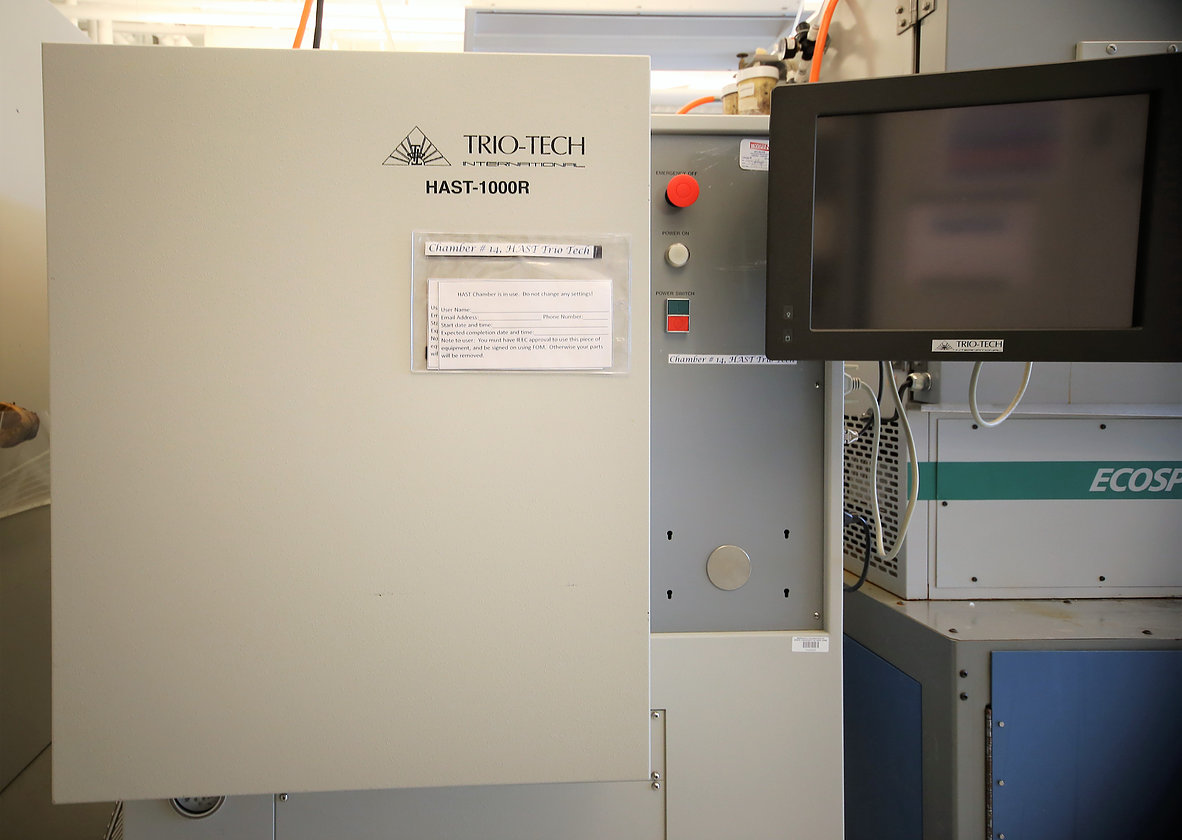

Trio Tech 1000R HAST Chamber
The Trio Tech HAST Chamber is used for pressurized temperature and humidity storage. Additionally, the chamber features an isothermal or thermal cycle and built in steam generator. The Trio Tech is capable of 105C to 160C, 50% RH to 100% RH and 56 PSI, gage (4.8 atmospheres, absolute). The Chamber meets JEDEC standards JESD22-A118, A110, and 102C, and conforms to MIL standards 45208A, 45662A, and ANSI-NCSL Z540-1. Interior dimensions are 14" (d) x 25" (l).

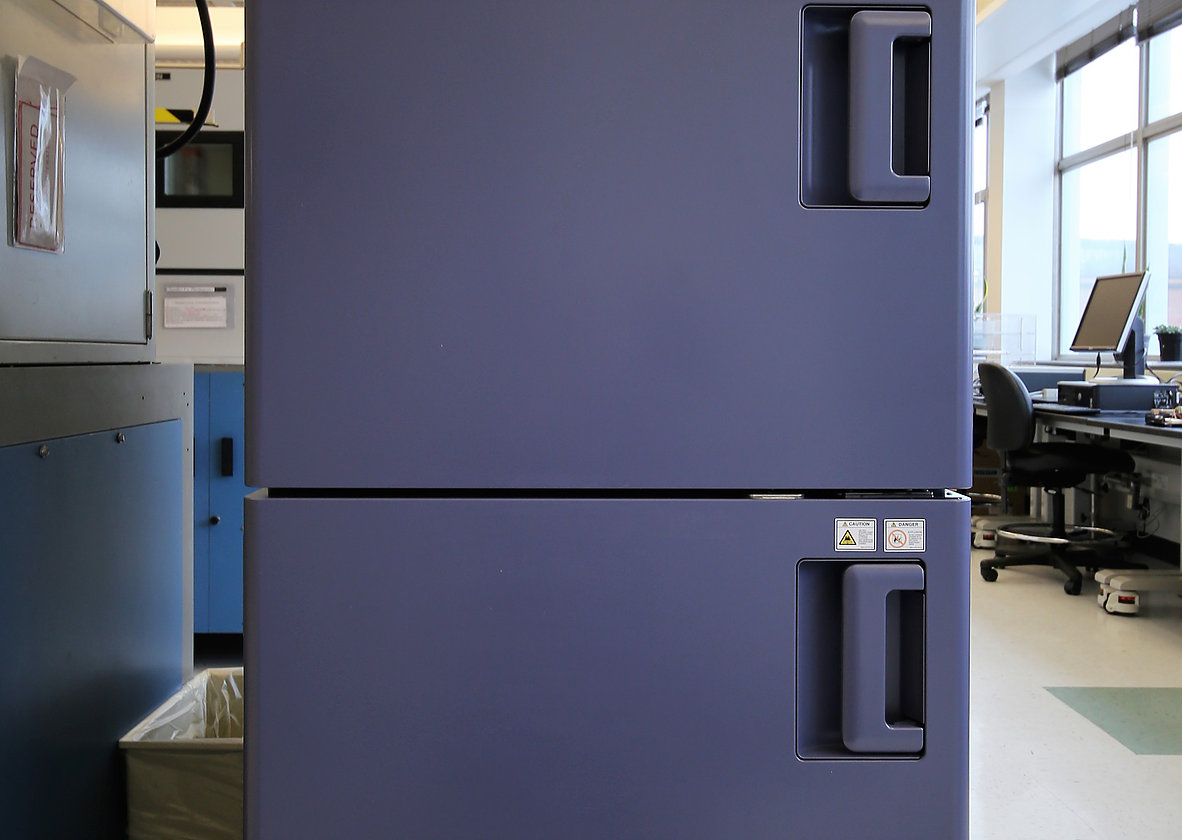

Espec ETS4-25W Thermal Shock Chamber
The Espec Thermal Shock Chamber is used for temperature cycling and air to air thermal shock. The chamber has a -75C to 0C isothermal cold compartment and a 60C to 200C isothermal hot compartment. The oven has a transfer time of less than one (1) minute and can handle up to three (3) transfers cycles per hour. The unit has 4 MIL-STD patterns stored internally, which include MIL-883-A, -B, -C and -D. The interior dimensions are 20" (l) x 20" (w) x 16" (h).
